For a reliable gate automation system, you need to consider the gate weight, frequency of use, motor technology, encoder, limit switches, safety devices, operating environment and backup requirements.
For applications where the gate is heavy and used frequently, the Roger Technology BH30/804 is a powerful option to consider.
The BH30/804 is a brushless, low-voltage electromechanical sliding gate motor designed for sliding gates up to 1000 kg. It features an onboard B70/1DC digital controller, digital encoder, magnetic limit switch and a built-in two-channel radio receiver.
Is the Roger BH30/804 a Good Sliding Gate Motor?
Yes. If you have a sliding gate weighing up to 1000 kg and require intensive daily operation, the Roger Technology BH30/804 is a strong choice.
The BH30/804 offers:
- Maximum gate weight: 1000 kg
- Brushless motor technology
- 24V motor power supply
- 340W power
- 880N thrust
- 12 m/min operating speed
- Magnetic limit switch
- Digital encoder with 4096 PPR
- Built-in B70/1DC digital control unit
- Built-in two-channel radio receiver
- Up to 1300 operating cycles per day
- IP44 protection rating
- Operating temperature from -20°C to +55°C
- Optional battery backup
However, the maximum 1000 kg rating should not be considered the only factor when selecting a gate motor. Gate alignment, wheels, track condition, rack installation, friction and frequency of use are also important.
What Makes the BH30/804 Different?
1. Brushless Motor Technology
One of the main features of the BH30/804 is its brushless motor technology.
The motor is designed for intensive use, making it suitable for locations where the sliding gate needs to open and close frequently throughout the day.
Brushless motor technology is particularly useful for demanding gate automation applications where reliability and frequent operation are important.
This makes the BH30/804 suitable for applications such as:
- Large residential sliding gates
- Villa entrance gates
- Commercial properties
- Factory gates
- Warehouse gates
- Apartment and society entrances
- Industrial premises
- High-traffic vehicle entrances
2. Designed for Sliding Gates Up to 1000 kg
The Roger Technology BH30/804 is designed for sliding gates weighing up to 1000 kg.
This makes it suitable for heavy-duty sliding gate automation applications.
It can be considered for:
- Heavy residential gates
- Commercial gates
- Industrial gates
- Factory entrances
- Warehouse entrances
- Apartment complexes
- Institutional properties
Important Installation Consideration
A 1000 kg gate should not simply be matched with a 1000 kg-rated motor and installed.
Before installing an automatic sliding gate motor, the gate should move smoothly and freely.
The following should be checked:
- Gate wheels
- Track alignment
- Bearings
- Gate structure
- Rack alignment
- Mechanical stops
- Rolling resistance
A powerful motor cannot compensate for a poorly aligned or mechanically damaged sliding gate.
3. 24V Motor System
The BH30/804 uses a 24V motor power supply and a 230V AC, 50/60Hz mains supply.
The system uses brushless motor technology with electronic control through the B70/1DC controller.
The 24V architecture is well suited to modern automatic gate automation systems and allows the motor and control electronics to work together for controlled gate movement.
4. Digital Encoder for Precise Gate Movement
The BH30/804 incorporates a digital encoder.
The encoder specification is:
Digital native encoder + magnetic digital SENSORED, 4096 PPR.
An encoder provides the control system with information about motor movement and position.
This is important because an automatic sliding gate should not simply switch the motor ON and OFF. The controller needs to manage the movement of the gate and respond correctly to its position.
The B70/1DC control system also provides encoder diagnostics and troubleshooting functions.
5. Magnetic Limit Switch
The BH30/804 uses a magnetic limit switch.
A limit switch tells the automation system when the gate has reached its required open or closed position.
The B70/1DC controller supports magnetic and mechanical limit-switch configurations.
Correct positioning of the limit switches is important for reliable gate operation.
After adjusting the limit switches, the gate travel acquisition procedure should be performed according to the manufacturer’s instructions.
6. Intensive-Use Sliding Gate Automation
The BH30/804 is designed for intensive use.
Its product specification states up to 1300 opening and closing cycles per day over a 24-hour period.
This makes it particularly suitable for locations where gates operate frequently.
Suitable applications include:
Factories
Factory entrances can experience frequent vehicle movement throughout the working day.
Warehouses
Delivery vehicles and staff access can result in repeated gate operation.
Apartment Complexes
Residential societies and apartment entrances can experience a large number of opening and closing cycles.
Commercial Properties
Businesses with regular vehicle access can benefit from an automation system designed for intensive operation.
7. 880N Thrust
The BH30/804 provides a specified thrust of 880N.
Thrust is the force generated by the motor to move the sliding gate.
However, thrust should always be considered together with the actual gate installation.
Factors such as gate weight, gate length, wheel condition, track alignment, wind exposure and mechanical resistance can affect the required motor capacity.
For this reason, professional assessment of the gate is recommended before selecting the motor.
8. 12 m/min Operating Speed
The specified manoeuvre speed of the BH30/804 is:
12 m/min (0.20 m/s).
The actual opening time depends on the travel distance of the gate.
For example, a gate with approximately 6 metres of travel would theoretically take around 30 seconds at a constant 12 m/min speed.
Actual operating time can vary because the automation system manages acceleration, deceleration, limits and other operating parameters.

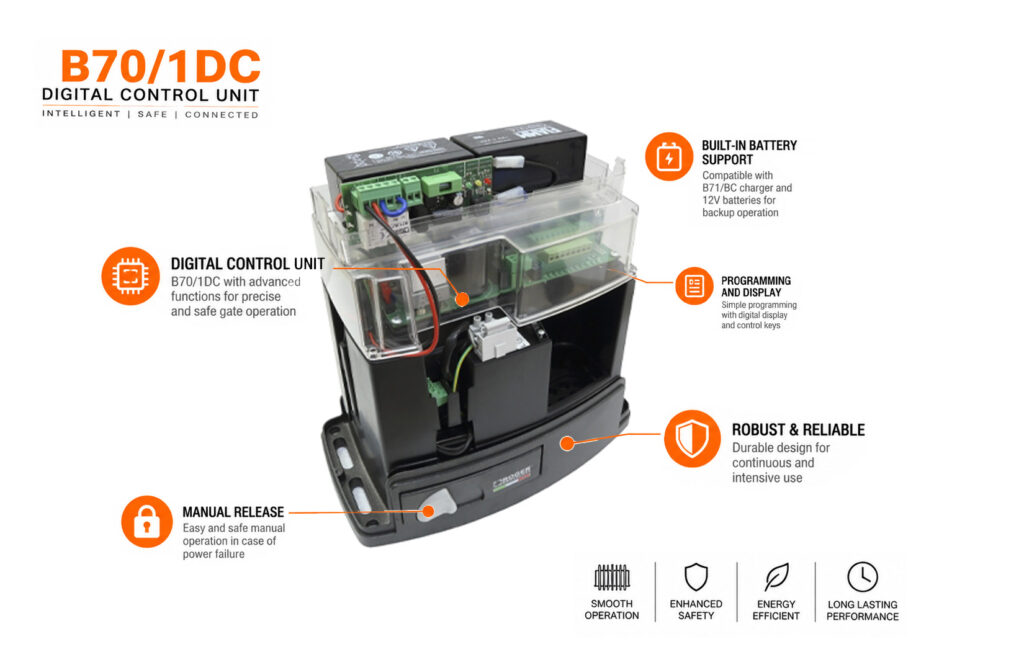

9. Built-In B70/1DC Digital Controller
A major feature of the BH30/804 is its integrated B70/1DC digital control unit.
The controller manages the operation of the automatic sliding gate and provides several important functions.
These include:
- Digital display
- Programming controls
- Motor control
- Encoder connection
- Limit-switch connection
- Safety-device inputs
- Radio receiver connection
- RS485 communication
- Diagnostic functions
- TEST mode
- Battery charger compatibility
- Optional B74/BCONNECT connectivity
This means the BH30/804 is more than just a motor. It is an integrated sliding gate automation system.
10. Safety Device Integration
Safety should always be an important part of automatic gate installation.
The B70/1DC control system supports safety devices such as photocells and safety edges.
A professional automatic sliding gate installation may include:
- Safety photocells
- Safety edges
- Flashing warning light
- Emergency/manual release
- Stop input
- Remote controls
- Warning signage where required
Safety devices help detect obstacles and provide additional protection during automatic gate operation.
The correct safety equipment should be selected according to the specific gate installation.
11. Built-In Radio Receiver
The BH30/804 includes a two-channel radio receiver installed onboard.
The B70/1DC controller provides radio functions for normal step-by-step operation and partial gate opening.
This allows users to operate the sliding gate conveniently using compatible remote controls.
Partial opening can also be useful for pedestrian access where the installation is configured for this purpose.
12. Optional Battery Backup
Power failure is a common concern with automatic gates.
The BH30/804 supports optional battery recovery systems.
Available battery options include:
- 12V 1.2Ah batteries
- 12V 4.5Ah batteries
- Internal battery configuration
- External battery configuration
The appropriate battery configuration depends on the installation requirements.
Battery backup can be particularly useful for commercial properties, apartment complexes, factories and other locations where gate access is important during power interruptions.
13. Low Standby Power Consumption
The BH30/804 has a specified standby consumption of 0.5W.
Because an automatic gate motor normally remains connected to its power supply, standby energy consumption is an important specification to consider when choosing a gate automation system.
14. IP44 Protection Rating
The BH30/804 has an IP44 protection rating.
Its specified operating temperature range is:
-20°C to +55°C.
Correct installation is still important even when the motor has an IP protection rating.
The motor should be installed according to the manufacturer’s installation requirements and should not be exposed to conditions outside its specified operating range.
BH30/804 Technical Specifications
Model: BH30/804
Application: Sliding gate automation
Maximum gate weight: 1000 kg
Motor type: Brushless
Motor power supply: 24V
Mains supply: 230V AC, 50/60Hz
Power: 340W
Thrust: 880N
Operating speed: 12 m/min (0.20 m/s)
Frequency of use: Intensive use
Operating cycles: Up to 1300 cycles per day
Encoder: Digital native encoder + magnetic digital SENSORED
Encoder resolution: 4096 PPR
Limit switch: Magnetic
Control unit: B70/1DC
Protection rating: IP44
Operating temperature: -20°C to +55°C
Gear: Z15 / module 4
Standby consumption: 0.5W
Battery backup: Optional
Radio receiver: 2-channel onboard
BH30/804 Dimensions
The maximum product dimensions of the BH30/804 are approximately:
315 × 165.8 × 329 mm (L × W × H)
Before manufacturing or modifying the gate, it is recommended to plan the motor position and foundation area according to the required installation dimensions.
BH30/804 Accessories
The BH30/804 can be used with various accessories depending on the installation requirements.
Battery Accessories
Available options include:
- B71/BC battery charger
- BT12V12 12V 1.2Ah battery
- BT12V45 12V 4.5Ah battery
- HT418 external battery box
- HT421 external battery box
Mounting Accessories
Available mounting accessories include:
- KT214/SA
- KT214/SC
- KT214/SF
- KT214/SN
- KT221 raised fixing plate
Sliding Gate Rack
The product range includes different rack options such as:
- Galvanised steel rack
- Nylon rack
- Rack spacers
- Mounting screws and accessories
Chain Drive
A chain-drive kit is also available for suitable BH30/H30 series installations.
The correct accessory should always be selected according to the gate design and installation requirements.
How to Choose the Right Sliding Gate Motor
Before purchasing an automatic sliding gate motor, consider these important factors.
1. Gate Weight
First determine the actual weight of the gate.
The BH30/804 is rated for sliding gates up to 1000 kg.
Do not choose a motor based only on the appearance or size of the gate.
2. Frequency of Use
Consider how many times the gate opens and closes each day.
A small residential gate used a few times per day has different requirements from a factory entrance operating hundreds of times per day.
For high-traffic applications, choose a motor specifically designed for intensive use.
3. Gate Mechanical Condition
The sliding gate should move smoothly before automation.
Check:
- Wheels
- Track
- Bearings
- Alignment
- Rack
- Gate stops
- Gate structure
If the gate is difficult to move manually, the mechanical problem should be corrected before installing the motor.
4. Safety Equipment
A professional automatic gate installation should consider suitable safety equipment.
Depending on the installation, this can include:
- Photocells
- Safety edges
- Flashing light
- Emergency release
- Stop controls
5. Power Failure Requirements
If the gate needs to operate during power cuts, consider installing a compatible battery backup system.
The BH30/804 supports optional battery recovery.
6. Installation Space
Check the available space before installing the motor.
The BH30/804 dimensions are approximately:
315 × 165.8 × 329 mm.
Planning the motor location during gate fabrication can make installation easier.
7. Professional Commissioning
Correct commissioning is an important part of automatic gate installation.
The B70/1DC controller uses a travel acquisition procedure to learn the gate movement and store the required control parameters.
This procedure should be completed correctly during installation.
Is a 1000 kg Sliding Gate Motor Suitable for Your Gate?
Not necessarily.
The weight rating is only one part of selecting the correct motor.
Two sliding gates may both weigh 800 kg but have completely different mechanical requirements.
One gate may have:
- High-quality wheels
- Straight track
- Correct alignment
- Proper rack installation
- Low rolling resistance
Another gate may have:
- Damaged wheels
- Uneven track
- Excessive friction
- Poor alignment
- Structural problems
The first gate may operate smoothly, while the second can put unnecessary stress on the automation system.
This is why the gate should be inspected before selecting the motor.
Why Professional Gate Automation Installation Matters
An automatic sliding gate is a complete system—not just a motor.
The system consists of:
Gate → Wheels → Track → Rack → Motor → Encoder → Controller → Limit Switches → Safety Devices → Remote Controls
Every component needs to work correctly with the others.
Professional installation includes:
- Checking gate movement
- Installing the motor
- Correct rack alignment
- Installing limit switches
- Connecting safety devices
- Programming the controller
- Performing travel acquisition
- Testing opening and closing
- Testing safety functions
- Checking manual release operation
Proper installation can make a significant difference to the long-term performance of an automatic sliding gate.
Common Sliding Gate Motor Problems
Even a high-quality sliding gate motor can experience problems if the gate or installation is not correct.
Gate Does Not Open or Close
Possible causes can include:
- No power
- Blown fuse
- Motor connection problem
- Encoder problem
- Safety device activation
- Travel acquisition error
- Limit-switch problem
Gate Stops During Operation
Possible causes can include:
- Excessive mechanical resistance
- Incorrect settings
- Safety-device activation
- Encoder problems
- Limit-switch problems
- Gate alignment issues
If a fault occurs, the controller’s diagnostic functions can help identify the problem.
For safety, electrical troubleshooting should be carried out by a qualified technician.
Can the BH30/804 Be Connected for Remote Management?
The B70/1DC control system supports the optional B74/BCONNECT Wi-Fi/IP device.
Depending on the configuration, B74/BCONNECT can allow management of the control system using internet-connected devices such as smartphones, tablets and computers.
Remote connectivity can be useful for certain commercial and managed gate installations.
Who Should Consider the Roger BH30/804?
The BH30/804 is worth considering if you need:
- A heavy-duty sliding gate motor
- Automation for gates up to 1000 kg
- Intensive daily operation
- Brushless motor technology
- Digital encoder feedback
- Magnetic limit switching
- Integrated digital control
- Optional battery backup
- Safety-device integration
- Remote-management compatibility
- Commercial or industrial gate automation
The Roger Technology BH30/804 is specified for sliding gates up to 1000 kg.
Yes. It is designed for sliding gates up to 1000 kg and is classified for intensive use.
Yes. The BH30/804 uses brushless motor technology.
The specified operating speed is 12 m/min (0.20 m/s)
Yes. It features a digital native encoder with magnetic digital SENSORED technology and 4096 PPR.
Yes. The BH30/804 uses a magnetic limit switch.
Yes. Optional battery recovery is available.
The product datasheet specifies up to 1300 opening/closing cycles per day over a 24-hour period.
The BH30/804 uses the B70/1DC digital control unit.
Yes. Correct installation, programming, travel acquisition and safety testing are important for reliable automatic gate operation.
Final Verdict
If you are looking for a heavy-duty automatic sliding gate motor for a gate up to 1000 kg, the Roger Technology BH30/804 is a strong option to consider.
Its combination of brushless motor technology, 24V operation, 880N thrust, digital 4096 PPR encoder, magnetic limit switch, B70/1DC digital controller, intensive-use rating and optional battery recovery makes it suitable for demanding sliding gate applications.
However, the best sliding gate motor is not simply the motor with the highest weight rating.
The motor should be correctly matched to:
- Gate weight
- Gate dimensions
- Gate construction
- Mechanical condition
- Frequency of use
- Safety requirements
- Installation environment
A professional site assessment is therefore recommended before selecting and installing the automation system.
