2025 Modern sliding gate design
Key specs
Width
21'
Height
6'
Weight
700 KG
Automatic/
Manual
- Mead steel
GATE DESCRIPTION
Looking for a strong and stylish gate for your home or business? Our modern sliding gate design is a great choice. It offers the perfect mix of safety, style, and smooth operation. Whether you’re building a new villa or upgrading your current entrance, this gate adds a modern touch and works perfectly.
“Transform your home’s entrance into a masterpiece of modern elegance with our vertical louvers iron sliding gate—a seamless blend of strength, style, and sophistication.”

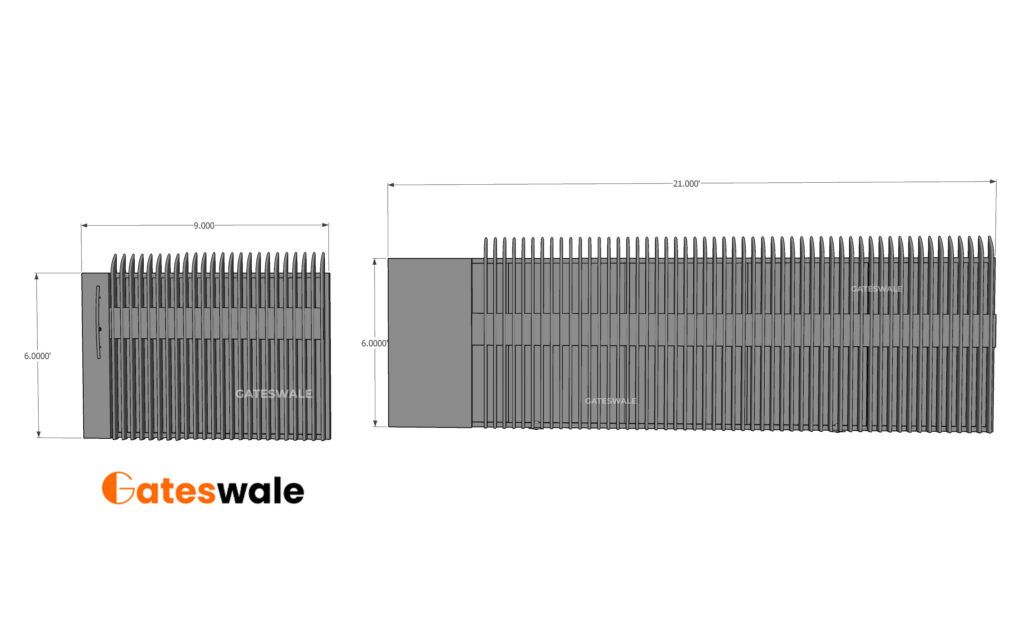

Big and Bold – Gate Size Details
This gate is made for wide entrances. It is 21 feet wide and 6 feet tall, making it perfect for villas, bungalows, or large commercial properties. The size helps cover big spaces and gives a premium look.

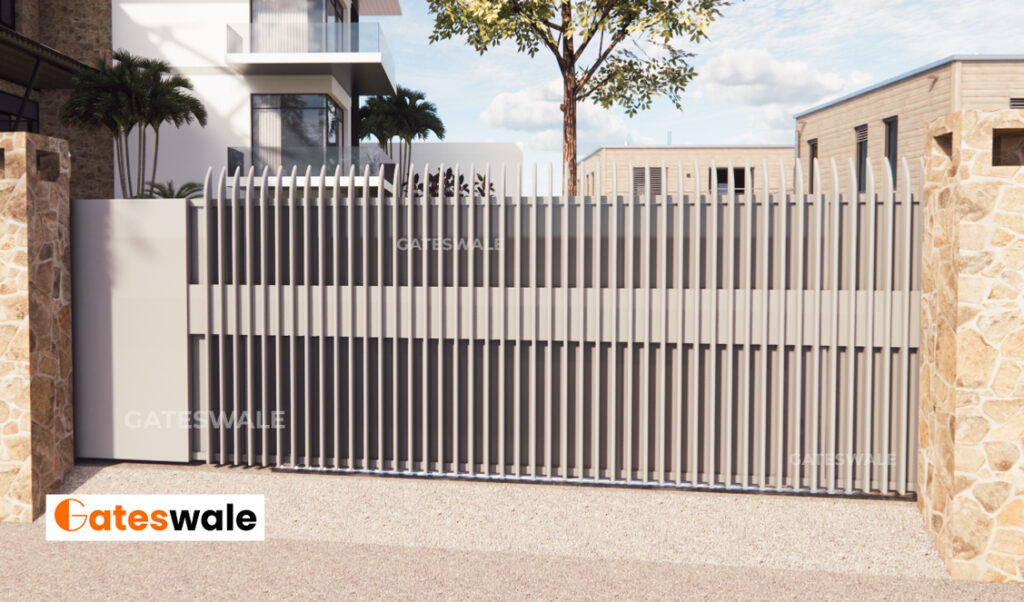

Modern Vertical Blade Design
The design is clean and modern. We use a Vertical Blade Design that gives the gate a bold and neat look.
The main frame is made from 2×2 inch hollow rectangular pipes (MS – mild steel), which are strong and long-lasting.
Inside the gate, we use custom-made MS pipes for the blade design.
A 3mm thick MS sheet is used from the start of the gate and again in the center part to make the design stand out and look premium.

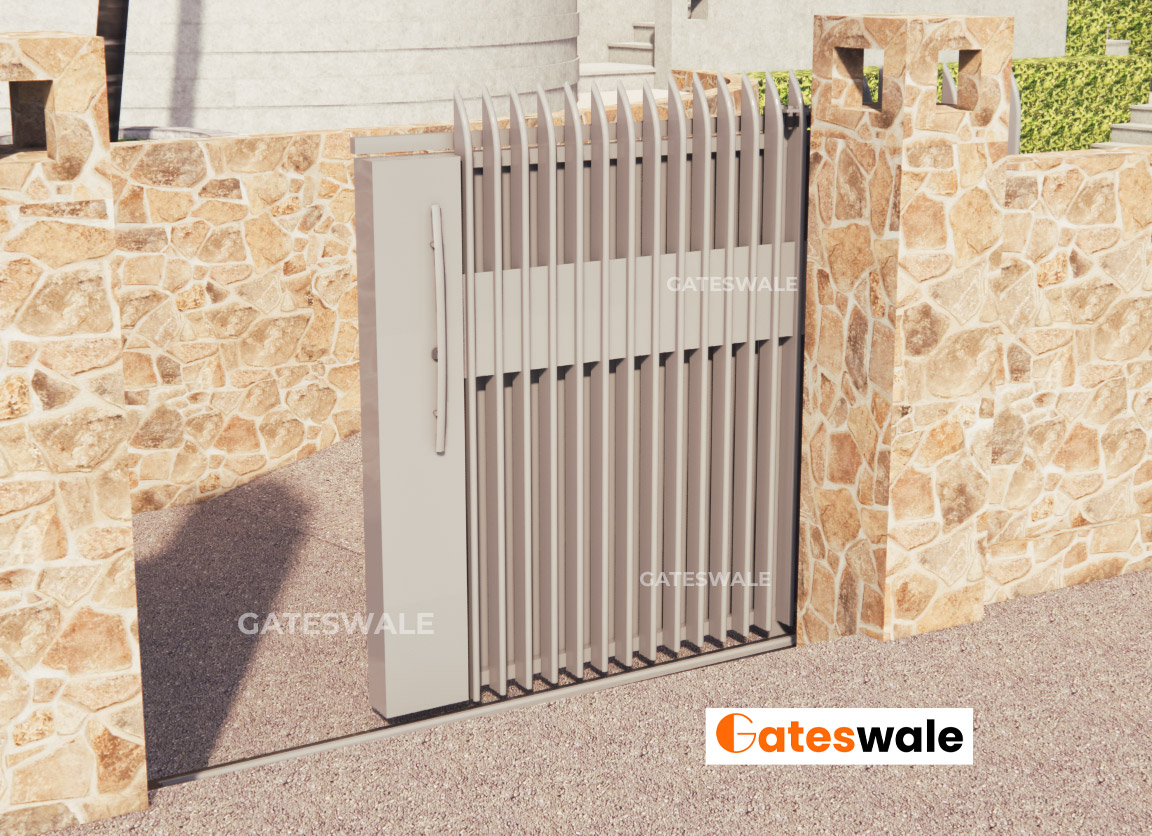

Wicket Gate – Wide and Stylish
This gate also includes a wicket gate (a small gate within the big gate). Normally, wicket gates are smaller, but for this villa project, we made it 9 feet wide and 6 feet tall to match the grand entrance. It looks beautiful and makes entry easy.

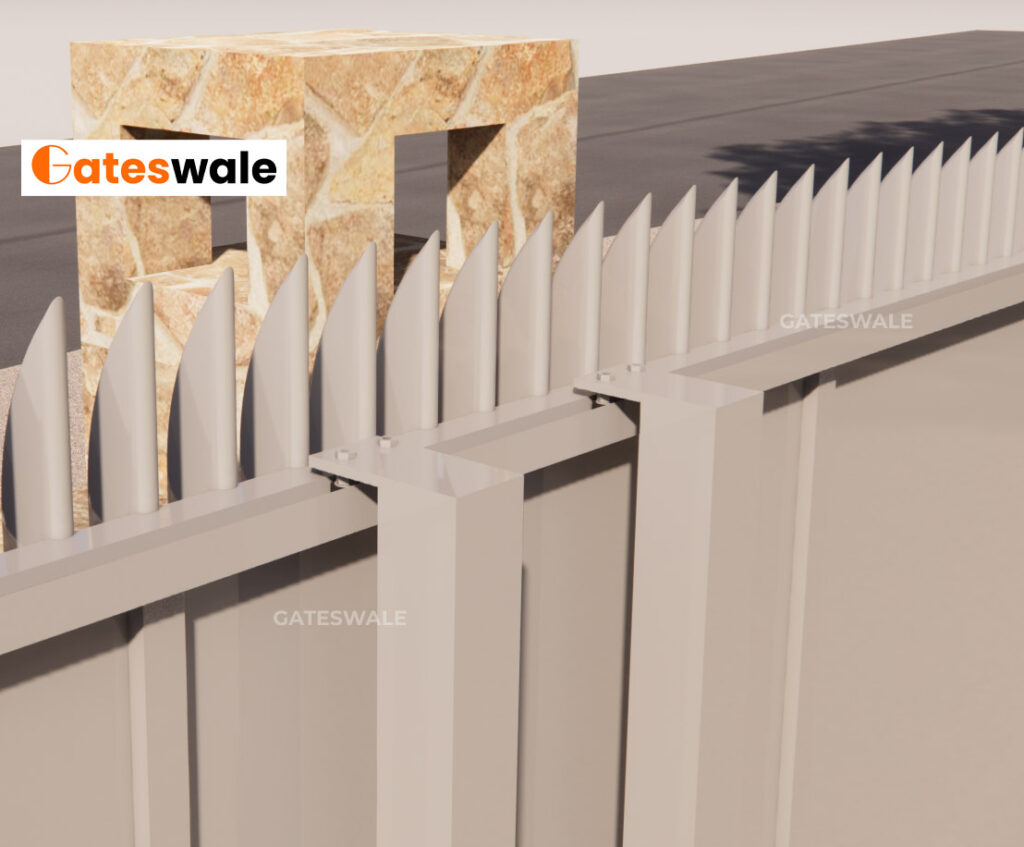

We also designed a special overlap system, which keeps both sliding gates strong and well-aligned.

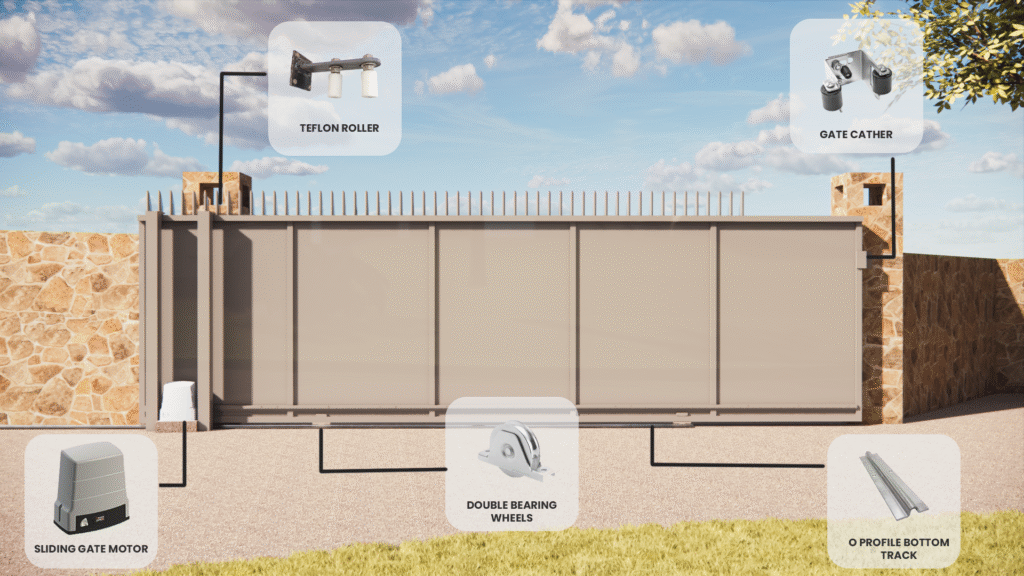

High-Quality Gate Parts and Accessories
To make sure the gate works smoothly and lasts long, we use top-quality parts:
Stainless steel O-profile track at the bottom for strong and rust-free movement
98mm sliding wheels with double bearings for easy and smooth sliding
A horizontal guide channel supports the gate and keeps it straight as it moves
Instead of using normal brackets with Teflon rollers, we added a strong metal bracket at the top. Inside this bracket, there are guiding wheels that help the gate move straight and prevent it from tilting or falling outward.
Gate Automation – Easy to Use Motor
For automatic operation, we suggest using a Brushless sliding gate motor made in Italy. It’s reliable, silent, and very smooth. You can open and close the gate with a remote or app, making it super easy to use every day.
Stylish Grey Rugged Paint Finish
The gate is painted with a Grey Deco color and finished with a rugged texture. This color looks modern and also hides dust and scratches well. It gives the gate a strong and stylish appearance that matches modern home designs.
FULL SPECS & FEATURES
| Dimension | Width: 21' | Height: 6' |
|---|---|---|
| Depth: 3.5" | ||
| Gate Weight | 700 KG (Approx.) | |
| Gate Material | Milled steal | |
| Gate Wheels | 98mm Double bearing Sliding Gate Wheels | |
| Support Roller | 1.25" Teflon Rollers | |
| Bottom Rail | Stainless Steel 20mm O Profile Bottom Track | |
| Automation | Roger Technology BH30/804 Gate Operator | |
| Colour | Mate Finish Light Smoke Grey |
Modern Modern Sliding gate Design Cost Breakdown (Estimated)
- Gate Fabrication cost :- ₹ 120000
- Gate Paint and Primer :- ₹ 40000
- Gate Hardware:- ₹ 60000
- Gate Automation:- ₹ 120000
- Other Accessories :- ₹ —
Why Choose This Modern Sliding Gate Design?
✅ Looks modern and stylish
✅ Strong and durable material
✅ Big wicket gate for grand entrance
✅ Smooth and safe sliding system
✅ Easy-to-use Italian motor
✅ Weatherproof paint with a clean finish
If you’re looking for a gate that looks great, lasts long, and works smoothly, this modern sliding gate design is the right choice. It combines strong materials, smart design, and easy automation for a complete entrance solution. Perfect for villas or any modern building, this gate adds value, safety, and beauty to your property.
