2025 Modern Cantilever Gate Design
Key specs
Width
18'
Height
7'
Weight
800 KG
Automatic/
Manual
- Mead steel
GATE DESCRIPTION
Welcome to Gateswale! We’re excited to share our latest cantilever gate design featuring a stunning diagonal slat pattern. After careful research and development, we’ve created this comprehensive guide to help you understand everything about cantilever gates, from design to installation.
“The future of gate design isn’t just about function—it’s about creating architectural statements that redefine your property’s first impression”
What Makes This Cantilever Gate Design Special?
Our new cantilever gate showcases a dynamic diagonal slat pattern that sets it apart from traditional designs. Unlike conventional vertical or horizontal bars, these angular lines create visual interest and give the gate a modern, industrial edge that perfectly complements contemporary architecture.
Cantilever Gate Specifications and Dimensions

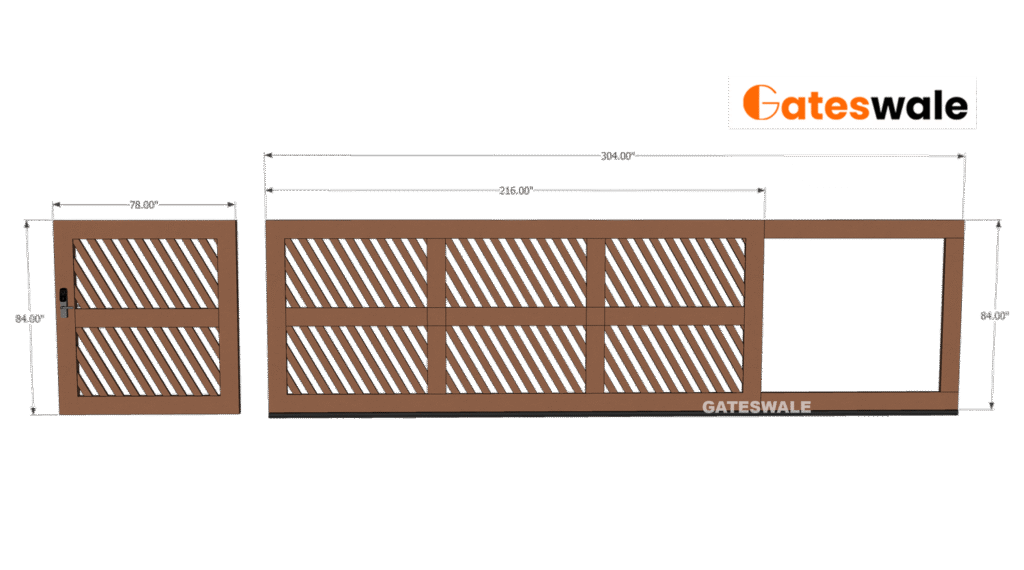

Main Gate Measurements
- Total Width: 304 inches
- Opening Width: 216 inches
- Overlap: 88 inches (approximately 30% of total gate width)
- Height: 84 inches
The 30% overlap is crucial for cantilever gate stability and proper weight distribution. This engineering requirement ensures smooth operation and prevents sagging over time.
Wicket Gate Specifications
- Height: 84 inches
- Width: 78 inches
- Design: Matching diagonal slat pattern for aesthetic consistency
Materials and Construction Details
Frame Construction
For maximum durability and strength, we use high-quality materials:
Main Frame: 8 x 1.5″ rectangular hollow steel pipe provides the structural backbone of the gate.
Diagonal Slat Pattern: 3 x 1.5″ pipe creates the distinctive angular design while maintaining structural integrity.
Horizontal and Vertical Support: 8 x 1.5″ pipe ensures consistent strength throughout the frame.
This combination of materials provides the perfect balance of strength, weight, and visual appeal for your cantilever gate system.
Essential Cantilever Gate Hardware Components
Gateswale’s Complete Hardware Kit Includes:
- Carriage Roller x 2: Support the gate’s weight and enable smooth sliding motion
- Guide Wheel x 2: Keep the gate properly aligned during operation
- End Stopper x 2: Prevent over-travel and protect the gate mechanism
- Adjusting Plate with Hook Bolt x 2: Allow for precise gate positioning and tension adjustment
- Cantilever Gate Track x 1: Provides the foundation for smooth gate movement
Cantilever Gate Automation Options
Modern cantilever gates can be fully automated for enhanced convenience and security. The automation process is similar to standard sliding gates and includes:
- Gear rack system: Provides reliable power transmission
- Modern sliding gate operator: Ensures smooth, quiet operation
- Safety features: Including obstacle detection and emergency stop functions
FULL SPECS & FEATURES
| Dimension | Width: 18' | Height: 7' |
|---|---|---|
| Depth: 3.5" | ||
| Gate Weight | 800 KG (Approx.) | |
| Gate Material | Milled steal | |
| Gate Wheels | Carriage Roller | |
| Support Roller | Heavy Duty Adjustable Sliding Gate Guide Roller 350mm | |
| Bottom Rail | Cantilever Gate Track 3" | |
| Automation | 1000 Kg Gate Operator | |
| Colour | cusom |
Cantilever Sliding gate Design Cost Breakdown (Estimated)
- Gate Fabrication cost :- ₹ 100000
- Gate Paint and Primer :- ₹ 40000
- Gate Hardware:- ₹ 88500
- Gate Automation:- ₹ 120000
- Other Accessories :- ₹ —
Why Choose a Cantilever Gate?
Advantages of Cantilever Gate Design:
- No ground track required: Eliminates debris accumulation and maintenance issues
- Smooth operation: Superior performance in all weather conditions
- Space efficient: No swing space needed, perfect for tight areas
- Durable construction: Engineered for long-lasting performance
- Modern aesthetic: The diagonal slat pattern adds contemporary appeal
Installation Considerations
While cantilever gates require more complex installation than traditional gates, the benefits make it worthwhile. Key installation factors include:
- Proper foundation: Essential for supporting the cantilever mechanism
- Precise alignment: Critical for smooth operation and longevity
- Professional installation: Recommended for optimal performance and warranty coverage
Our new cantilever gate design with diagonal slat pattern represents the perfect fusion of form and function. The modern industrial aesthetic, combined with robust construction and smooth operation, makes it an ideal choice for residential and commercial properties.
The 304-inch total width with 216-inch opening provides excellent vehicle access while maintaining the structural integrity essential for cantilever gate operation. With quality materials, professional-grade hardware, and optional automation, this gate system delivers long-term value and performance.
Ready to upgrade your property with a modern cantilever gate? Contact Gateswale today to discuss your specific requirements and receive a customized quote for your project.
